2.5G Ethernet 2x4 Stacked RJ45 Connectors , 8 Port Rj45 Connector 25.78mm Height

  • 1
  • 2

Brand Name : GLGNET

Model Number : JDKN4T89YA-D1D1 2.5G RJ45 Jack

Certification : ISO9001, ISO1400, UL, RoHS, IECQ QC080000

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20kkports/month

Delivery Time : 10 working days

Packaging Details : Tray, Tube, Reel, Carton

Jack Ports : 2x4

Transformer Speed : 2.5G Base-T

Jack Height : 25.78mm

Jack Width : 59.18mm

EMI Tabs : Yes

Shielding Shell : Stainless steel

Contact Now

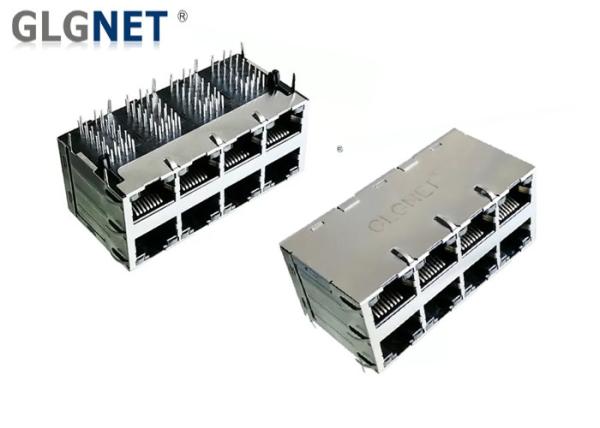

25.78mm Height 2x4 Stacked RJ45 Jack with Green Yellow LED Supports 2.5G Ethernet

1. 2x4 Stacked RJ45 Jack (JDKN4T89YA-D1D1) Materials:

  • Housing: Class Filled black PA46 UL94V-0 (ROHS)
  • Contact Terminal: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold on Mating Interface;
  • Shield: 0.2mm Thickness With Stainless steel
  • Jack Complys with FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process, soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: -0 ℃ to +70 ℃
  • Storage Temperature: -40 ℃ to +85 ℃

2. 2x4 Stacked RJ45 Jack (JDKN4T89YA-D1D1)Features:

  • Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards;
  • Comply with RoHS, REACH, UL requirements;​
  • Shielded 2x4 8P8C Stacked RJ45 Modular Jack;
  • Applied to 2.5G Base T Ethernet;
  • With Green Yellow LEDs;
  • With EMI Tabs for better EMI protection;
  • With 30u" Gold Plating on Mating Interface;
  • DIP (Through Hole) Mounting
  • 3 wire CMC PHY side
  • Supports Customization as requirements

3. GLGNET 2.5G 2x4 Stacked RJ45 Connectors (JDKN4T89YA-D1D1) Structure

Product Name Magnetic Jack, Modular Jack 8/8, RJ45
Status Active
Category Modular Jacks/Plugs
Part # JDKN4T89YA-D1D1
Component Type PCB Jack
Magnetic Yes, 2.5G Base-T
Power over Ethernet (PoE) Non POE
Tab N/A
Jack Height (mm) 25.78
Jack Length (mm) 28.4
Jack Width (mm) 59.18
Soldering Foot Length (mm) 3.3
Contact Mating Area Plating 30u" Gold Plating, can be customed as 1.8", 3u", 6u", 15u", 30u", 50u"
EMI Spring Yes
Orientation Right Angle (Side Entry)
PCB Locator Yes
PCB Retention Yes
Packaging Type Tray
Pitch - Termination Interface 1.27mm
Ports 2x4
Storage Temperature 0° to +70°C
Temperature Range - Operating -40° to +85°C
Waterproof / Dustproof No

4. GLGNET 2.5G 2x4 Stacked RJ45 Connectors (JDKN4T89YA-D1D1) Electrical Specification

Grounding to PCB Yes
Grounding to Panel Panel Ground Tab
Shielded Yes
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 180uH MIN@ 100KHz/100mV with 8mA DC Bias for (Channel 1,2,3,4)
Insertion Loss (IL)

-0.5dB MAX @ 1MHz – 50MHZ;

-1.5dB MAX @ 50MHz – 125MHZ;

Return Loss (RL)

Z out = 100 OHM

-dB MIN @ 1MHz – 40MHZ;

-20+15LOG(f/40MHz) dB MIN @ 40MHz – 200MHZ;

Crosstalk

Adjacent Channels

-35dB MIN @ 1MHz – 40MHZ

-35+15LOG(f/40MHz) dB MIN @ 40MHz – 125MH
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 200MHZ
Common To Differential Mode Rejection (REF) -35dB MIN @ 1MHz – 125MHZ
Differential to Common Mode Rejection (REF)

-40dB MIN @ 1MHz – 10MHZ

-28dB MIN @ 40MHz – 100MHZ

-23dB MIN @ 1MHz – 200MHZ
HI - POT 2250 VDC @ 60 Seconds

5. GLGNET 2.5G 2x4 Stacked RJ45 Connectors (JDKN4T89YA-D1D1) Application

  • Ethernet Switches
  • IDC ( Internet Data Center)
  • Work Station
  • Hubs
  • Web Servers
  • Motherboards

This is not a definitive list of applications for this product. It represents some of the more common uses.

6. GLGNET Advantages
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • 20KK Prots / Month Capacity
  • We are factory supports Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

7. GLGNET 2.5G 2x4 Stacked RJ45 Connectors (JDKN4T89YA-D1D1) Drawing :

2.5G Ethernet 2x4 Stacked RJ45 Connectors , 8 Port Rj45 Connector 25.78mm Height
